Forward vibratory plate

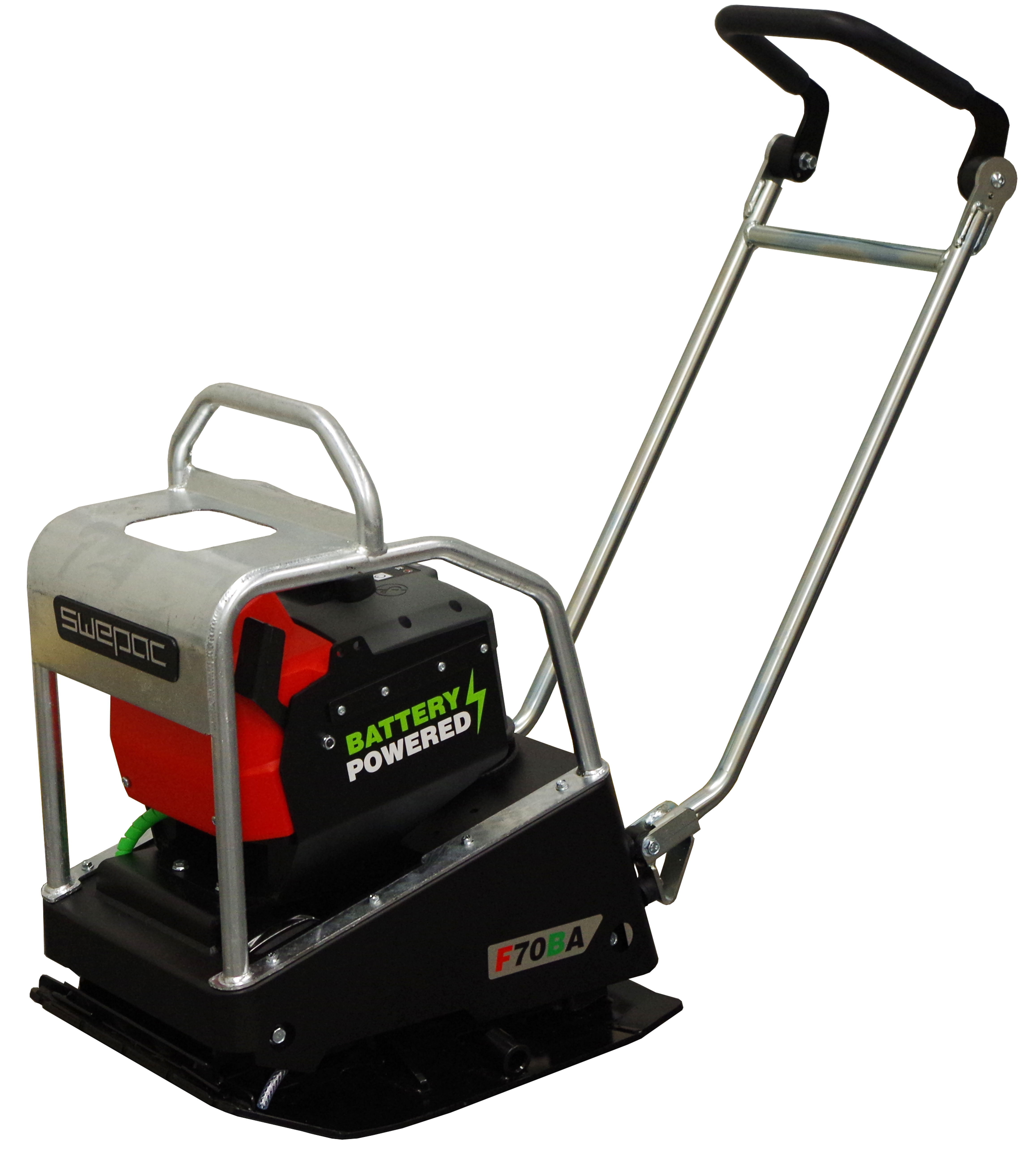

The Swepac F 70BA is ideal for work in areas where combustion engines should not be used, such as trenches, tunnels, urban areas or indoor construction.

Suited for emission free compaction of sand, gravel and rock fill.

  • The F 70BA comes with three different battery options; 0.5 kWh, 1.0 kWh and 1.4 kWh.
  • Operating time and charge time is depends on battery size and type of charger. See picture
  • Built-in water tank
  • Easy to service – no air filter or engine oil to change. No handling of fuel.
  • All our machine models are versatile and easy to operate. They are also durable and reliable meaning lower operating and maintenance costs.

Download documents

Contact us for more information

Technical specifications

Weight, excl. battery76 kg
Base plate, width x length 530 x 550
Height, max / min 1010 / 700 mm
Length, max / min 1125 / 565
Nominal power1.2 kW
Type of battery Lithium-ion
Centrifugal Force 11 kN
Frequency 98 Hz
Working Speed 0-25m / min
Water tank12 liters
Hand/arm vibrations according to ISO 5349 on gravel surface<2.5 m/s2
Guaranteed sound power level, LwA105 dB(A)
Sound pressure level (at operators ear)90 dB(A)
