Forward vibratory plate

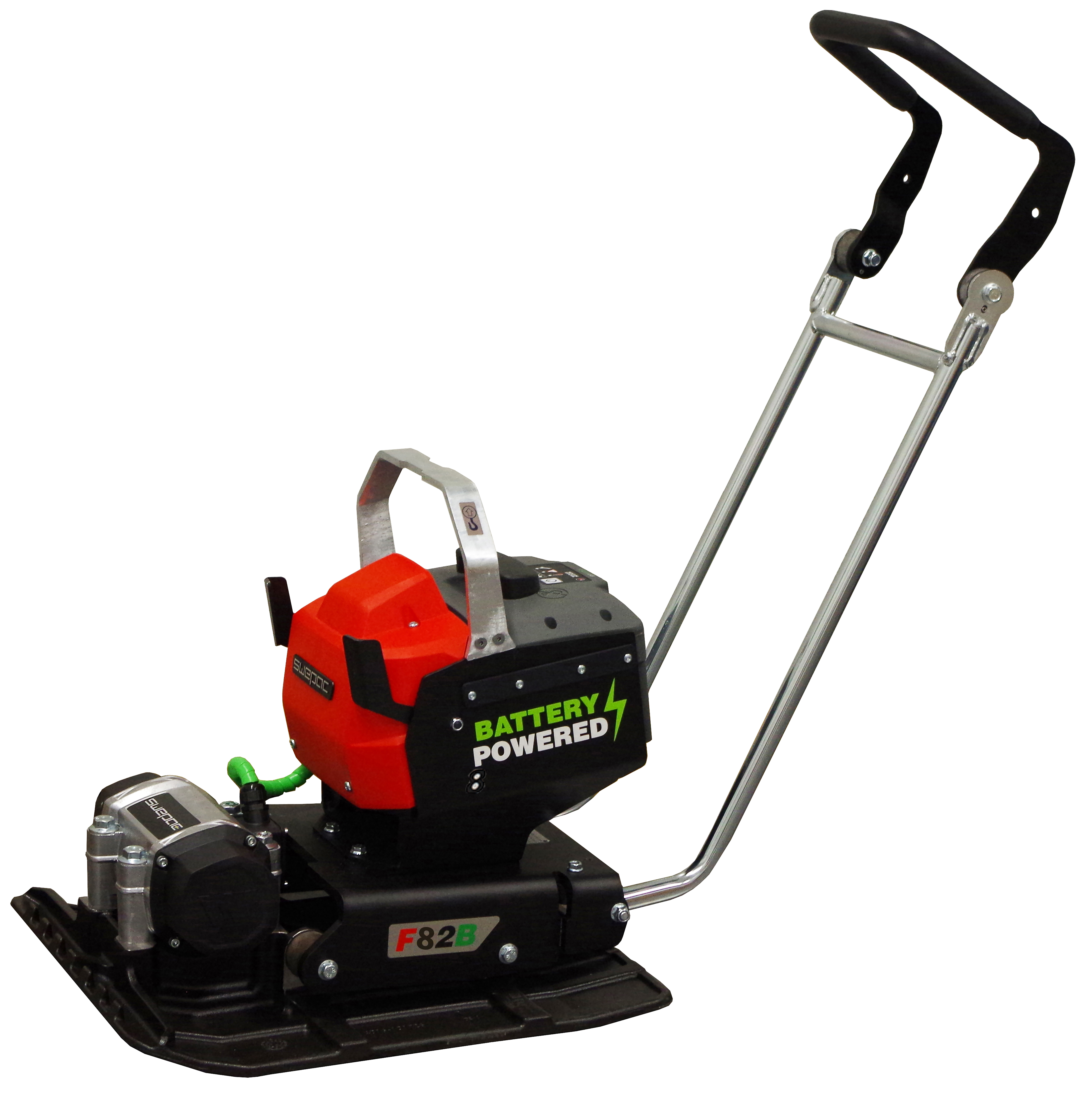

The Swepac F 82B is a compact, lightweight and easy-to-operate battery powered vibratory plate.

Suited for compaction of sand, gravel, asphalt and paving stones.

  • The F 82B comes with three different battery options; 0.5 kWh, 1.0 kWh and 1.4 kWh.
  • The run time and charging time depends on the size of the battery and type of charger. See picture
  • With a Vulkollan® plate (accessory) attached to the baseplate paved areas can be compacted efficiently for an even surface.
  • Devibrated and ergonomic handle with low hand-arm-vibration levels.
  • The handlebar can easily be removed without any tools, for instance, during transportation.

Accessories

  • Vulkollan plate with brackets
  • Wheel-kit for easy transportation

Contact us for more information

Technical specifications

Weight, excl. battery76 kg
Base plate, width x length430 x 610 mm
Height, max / min990 / 998
Length, max / min1070 / 610 mm
Nominal power1.2 kW
Type of battery Lithium-ion
Centrifugal force15 kN
Frequency97 Hz
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)3.2 m/s2
Guaranteed sound-power level, LWA105 dB(A)
Sound pressure level (at operator’s ear), OP90 dB(A)
