Mechanical poker vibrator

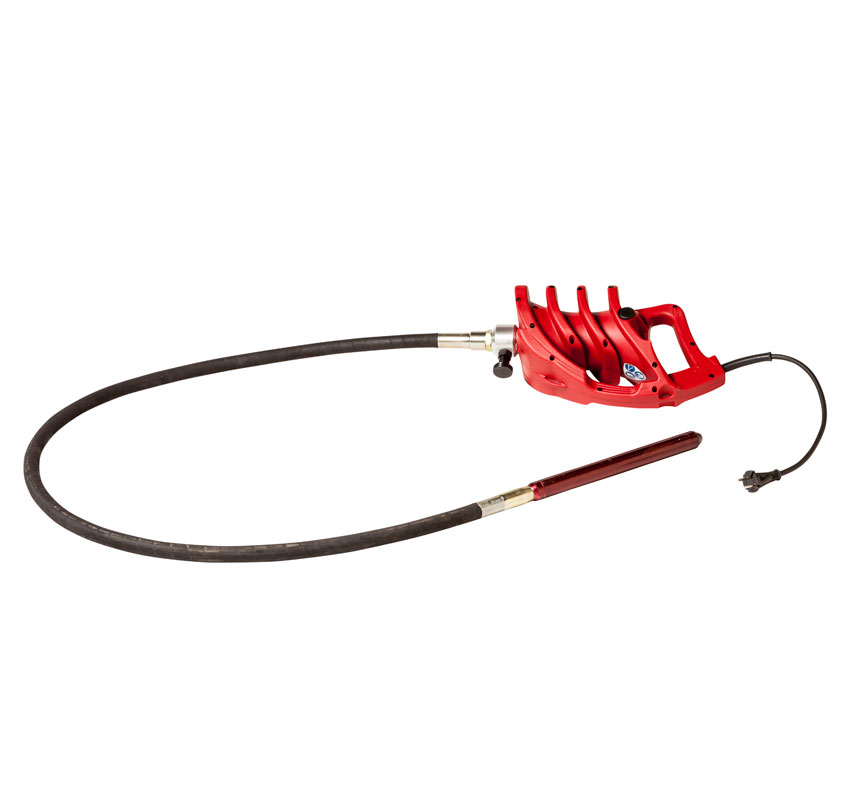

The Swepac PVD 2000 is a handy and adaptable, mechanical poker vibrator.

  • Strong 230V single-phase drive unit.
  • Robust and shock-resistant moulded plastic housing.
  • Provided with a quick coupling to facilitate the changing of shafts and poker heads.
  • The tubes can be unscrewed from shaft and changed between different shaft lengths.
  • Drive unit with two handle positions, one for floor casting and one for wall/column casting.
  • Reinforced cable against bending.
  • Shoulder strap.
  • Common to our machine models, they are smooth and easy to work with. They are also robust and reliable, which means low operating and maintenance costs

Accessories

.

Contact us for more information

Technical specifications

Poker typeMechanical
Suited forFlexible shaft and mechanical tubes
Motor, electric230V, 1-phase, 50 Hz
Power output2.3 kW
Speed drive unit (unloaded/loaded)17000-7000 rpm
Weight, drive unit5.4 kg
Shaft lengths1, 2, 3, 4 m
Tube diameter25, 32, 40, 48, 58 mm
