Forward vibratory plate

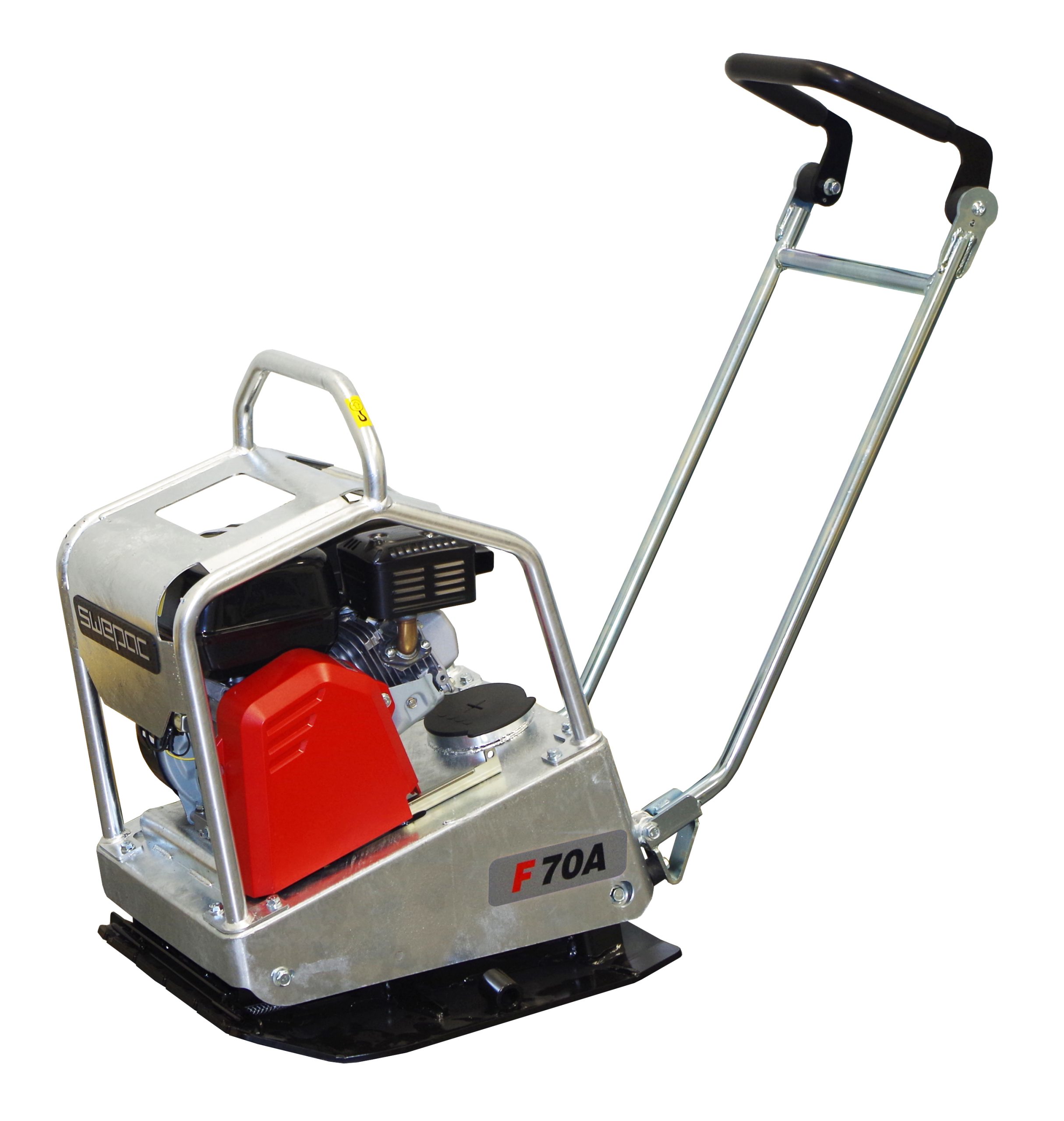

The Swepac F 70A is a compact, lightweight vibratory plate that is easy to maneuver. It is mainly built for asphalt and features a 12 liter built in water tank.

Suited for compaction of asphalt, sand, gravel, rock fill and paving stones

  • The machine is ideal for compacting small asphalted/ paved areas and for repair jobs.
  • Ergonomic de-vibrated handle with reduced vibration levels
  • It is also good for gravel and sand. With a Vulkollan® plate (accessory) attached to the base, it can compact paved areas efficiently for an even surface.
  • The chassis is hot-dip galvanized, which means superior corrosion protection for the integrated water tank as well.
  • The Hardox® wear plate in the base ensures a long service life and the bottom plate is specially designed for asphalt applications.
  • All our machine models are versatile and easy to operate. They are also durable and reliable meaning lower operating and maintenance costs.


  • Vulkollan plate 530 mm
  • Wheel kit for easy transportation
  • Hour meter

Contact us for more information

Technical specifications

Weight, net79 kg
Base plate, width x length530 x 550 mm
Height, max / min1090 / 870 mm
Length, max / min1050 / 625 mm
EngineHonda GX120 petrol
Fuel tank capacity2.5 liter
FuelUnleaded or alkylate petrol
Engine output, max2.6 kW (3.5 hp)
Centrifugal force11 kN
Frequency96 Hz
Water tank capacity12 litres
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)3.1 m/s2
Guaranteed sound-power level, LWA105 dB(A)
Sound pressure level (at operator’s ear), OP90 dB(A)
