Forward vibratory plate

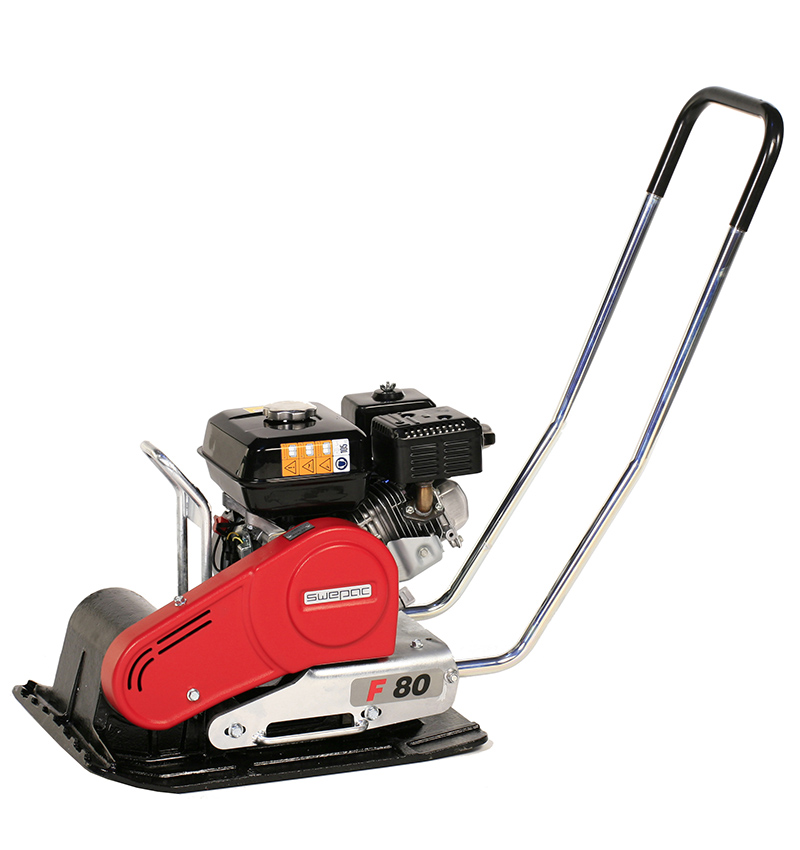

The Swepac F 80 is suitable for smaller jobs, such as adjusting the subsurface for pavers.

Suited for compaction of sand, gravel, rock fill and paving stones.

  • The machine can cope with the toughest of jobs since parts of the motor and transmission are fully enclosed in a rugged polythene casing.
  • The chassis and protection frame are hot-dip galvanized providing a superior corrosion protection and maintenance-free life.
  • With a Vulkollan® plate (accessory) attached to the base, it can compact paved areas efficiently for an even surface.
  • The excentric element has permanently lubricated bearings that require no maintenance.
  • The handlebar can easily be removed without any tools, for instance, for transportation.
  • All our machine models are versatile and easy to operate. They are also durable and reliable meaning lower operating and maintenance costs.

Accessories

  • Vulkollan plate 430 mm
  • Wheel-kit for easy transportation
  • Hour meter

Contact us for more information

Technical specifications

Weight, net80 kg
Base plate, width x length430 x 580 mm
Height, max / min1050 / 900 mm
Length, max / min1000 / 620 mm
EngineHonda GX160 petrol
Fuel tank capacity3.6 liter
FuelUnleaded or alkylate petrol
Engine output, max4 kW (5.3 hp)
Centrifugal force14 kN
Frequency93 Hz
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)4,6 m/s2
Guaranteed sound-power level, LWA105 dB(A)
Sound pressure level (at operator’s ear), OP90 dB(A)
