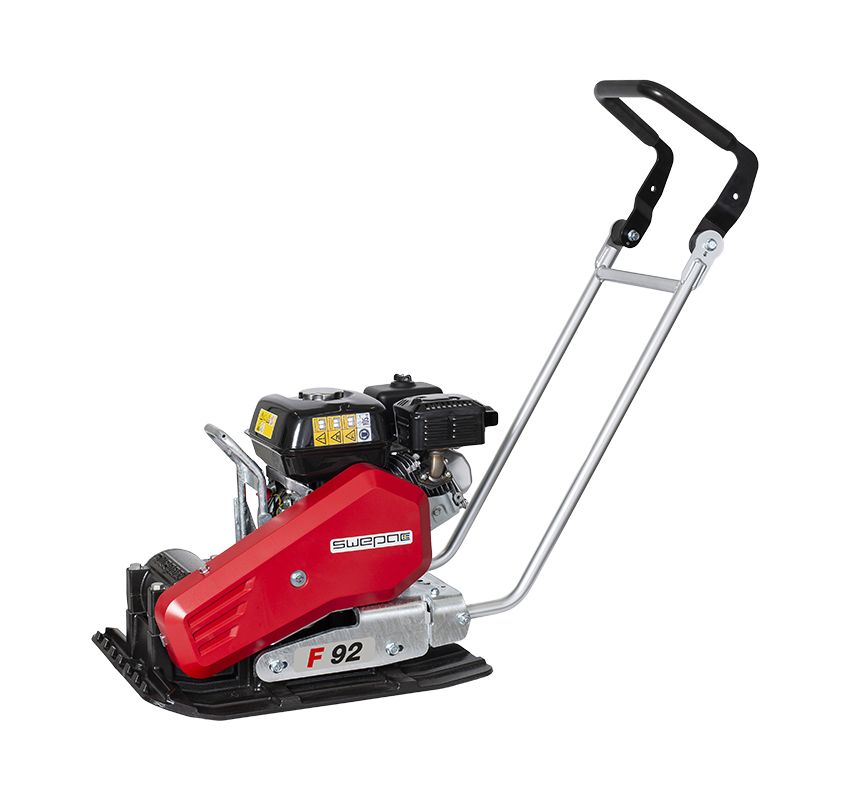

Forward vibratory plate

The Swepac F 92 is the ideal high performance all-round machine.

Suited for compaction of sand, gravel, rock fill and paving stones.

  • The F 92 can cope with the toughest of jobs since parts of the engine and transmission are protected by a cover.
  • The chassis and handlebar are galvanized providing a superior corrosion protection and maintenance-free life.
  • With a Vulkollan® plate (accessory) attached to the baseplate paved areas can be compacted efficiently for an even surface.
  • Devibrated and ergonomic handle with low hand-arm-vibration levels.
  • The handlebar can easily be removed without any tools, for instance, during transportation.


  • Vulkollan plate with brackets
  • Wheel-kit for easy transportation

Contact us for more information

Technical specifications

Weight, net88 kg
Base plate, width x length500 x 610 mm
Height, max / min990 / 980 mm
Length, max / min1070 / 640 mm
EngineHonda GX 160 petrol
Fuel tank capacity3.1 liter
FuelUnleaded or alkylate petrol
Engine output, max3.6 kW (4.8 hp)
Centrifugal force19 kN
Frequency93 Hz
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)3.2 m/s2
Guaranteed sound-power level, LWA105 dB(A)
Sound pressure level (at operator’s ear), OP90 dB(A)
