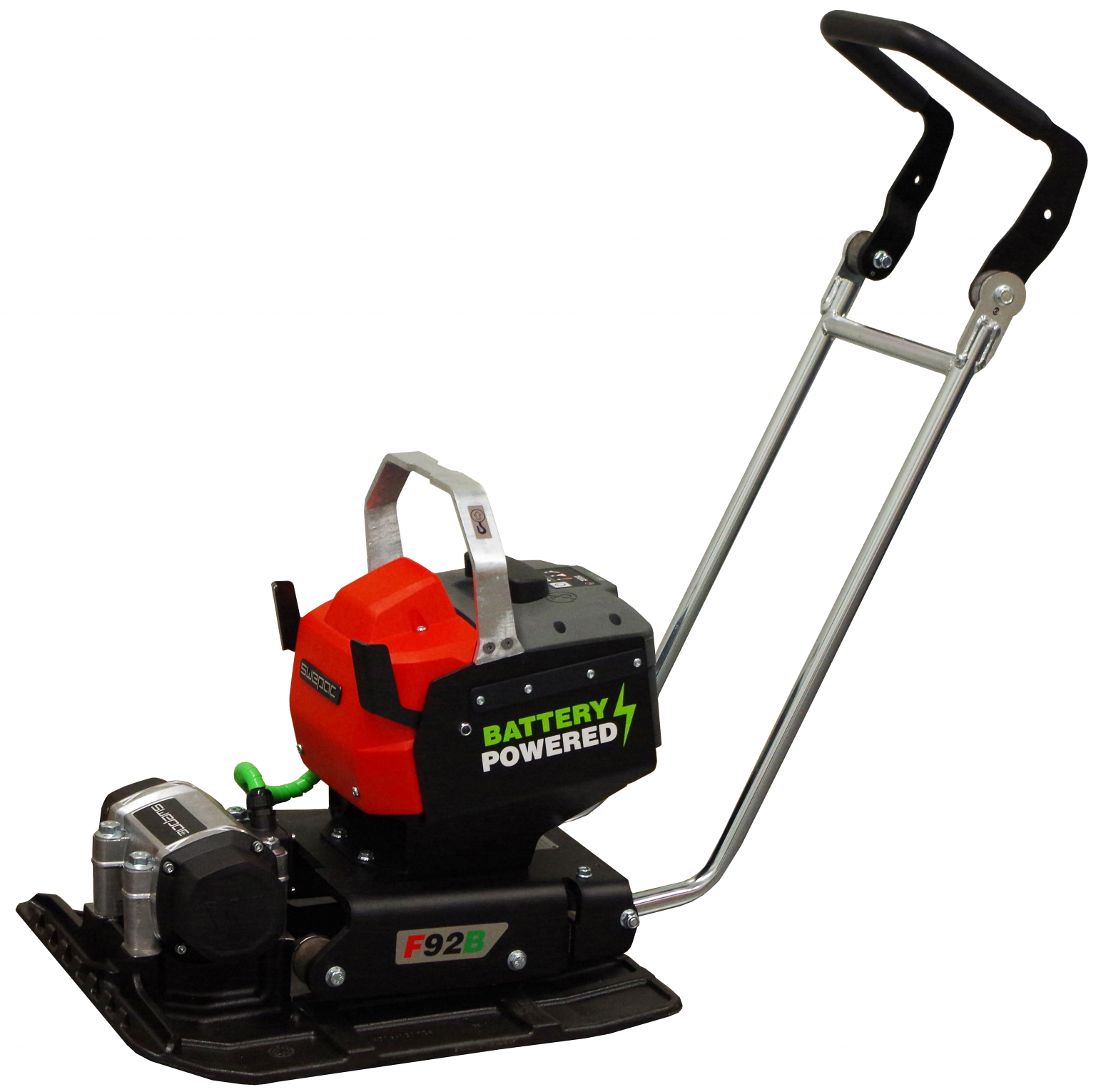

Forward vibratory plate

The Swepac F 92B is an ideal, high performance all-round vibratory plate powered by battery one.

Suited for compaction of sand, gravel, asphalt and paving stones.


  • The F 92B comes with three different battery sizes; 0.5 kWh, 1.0 kWh and 1.4 kWh.
  • Run time and charging time depends on the battery size and type of charger. See picture
  • With a Vulkollan® plate (accessory) attached to the baseplate paved areas can be compacted efficiently for an even surface.
  • Devibrated and ergonomic handle with low hand-arm-vibration levels.
  • The handlebar can easily be removed without any tools, for instance, during transportation.

Download documents

Contact us for more information

Technical specifications

Weight, excl. battery 80 kg
Base plate, width x length500 x 610 mm
Height, max / min990 / 998 mm
Length, max / min1070 / 610 mm
Type of batteryLithium-ion
Centrifugal force20 kN
Frequency97 Hz
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)3.5 m/s2
Guaranteed sound-power level, LWA103 dB(A)
Sound pressure level (at operator’s ear), OP95 dB(A)
