Reversible vibratory plate

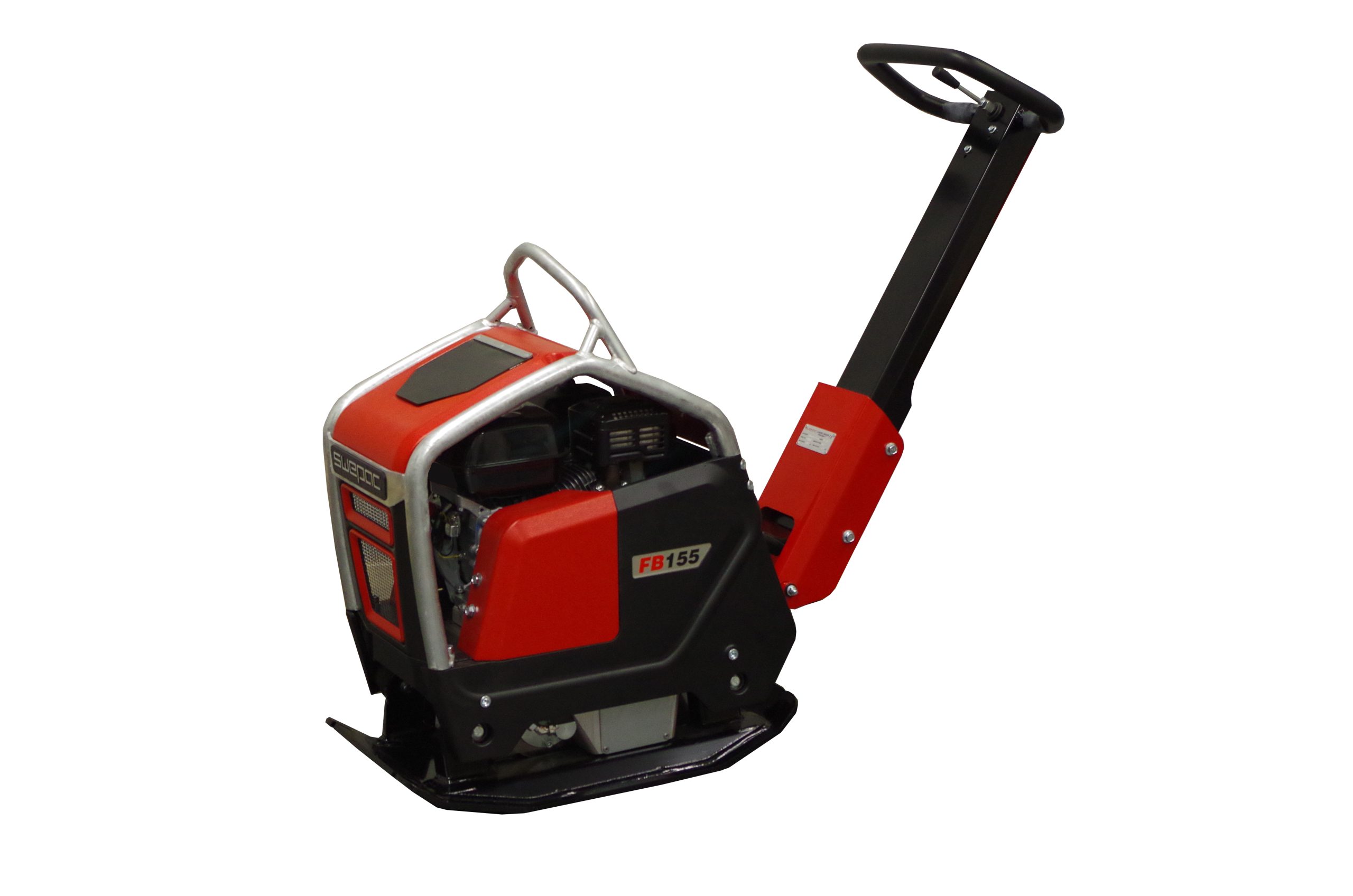

The Swepac FB 155 is a high-performance petrol-powered reversible compactor.

Suited for compaction of sand, gravel, rock fill and paving stones.

  • It has a belt-driven transmission and a fully variable speed control.
  • The Hardox® base plate ensures a long service life.
  • The robust and galvanized protection frame effectively protects the engine against external damage and is equipped with a strong and powerful lifting hook.
  • The compact design makes it suitable in trenches and other areas with limited space. With a paving mat (accessory) attached to the base, it compacts paved areas efficiently for an even surface.
  • The ergonomics are top class with a devibrated handle (HAV < 2,5 m/s2) and a separate joystick for directional and speed control.

Download documents

diagram

Accessories

  • Paving mat with brackets

Contact us for more information

Contact

Technical specifications

Weight, net176 kg
Operating weight179 kg
Base plate, width x length450 x 720 mm
Height, max / min1180 / 1000 mm
Length, max / min1440 / 800 mm
EngineHonda GX200 petrol
Fuel tank capacity3.1 liter
FuelUnleaded or alkylate petrol
Engine output, max4.3 kW (5.8 hp)
Centrifugal force32 kN
Frequency83 Hz
Working speed0 – 25 m/min
Hand/arm vibrations (HAV)2.5 m/s2
Guaranteed sound-power level, LWA105 dB(A)
Sound pressure level (at operator’s ear), OP91 dB(A)
