Reversible vibratory plate

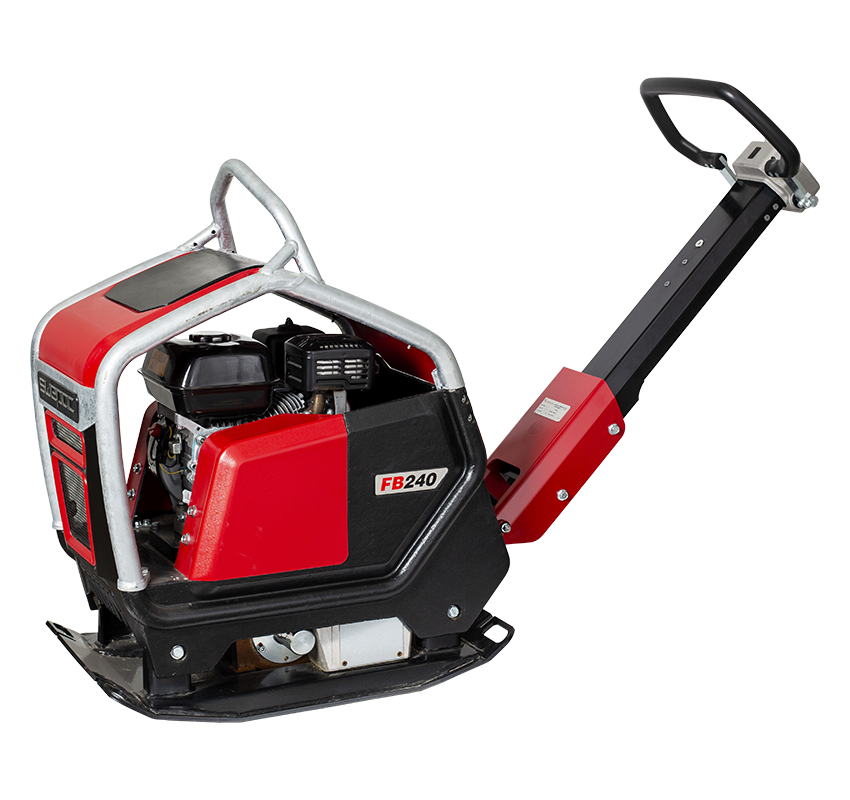

The Swepac FB 240 is a high-performance petrol-powered reversible compactor.

Suited for compaction of sand, gravel, rock fill and paving stones.



  • It has a belt-driven transmission and a fully variable speed control.
  • The Hardox® base plate ensures a long service life.
  • The robust and galvanized protection frame effectively protects the engine against external damage and is equipped with a strong and powerful lifting hook.
  • The compact design makes is suitable in trenches and other areas with limited space. With a paving mat (accessory) attached to the base, it compacts paved areas efficiently for an even surface.
  • The ergonomics are top class with a devibrated handle (HAV<2.5 m/s2) and a separate for directional and speed control.

Download documents

diagram

Tillbehör

  • Paving mat with brackets

Contact us for more information

Contact

Technical specifications

Weight, net217 kg
Operating weight220 kg
Base plate, width x length500 x 790 mm
Height, max / min1200 / 1030 mm
Length, max / min1530 / 900 mm
EngineHonda GX 200 petrol
Fuel tank capacity3,1 liter
FuelUnleaded or alkylate petrol
Engine output, max4,3 kW (5,8 hp)
Centrifugal force38 kN
Frequency78 Hz
Working speed0–25 m/min
Hand/arm vibrations (HAV)< 2,5 m/s2
Guaranteed sound-power level, LWA108 dB(A)
Sound pressure level (at operator’s ear), OP91 dB(A)
