Reversible vibratory plate

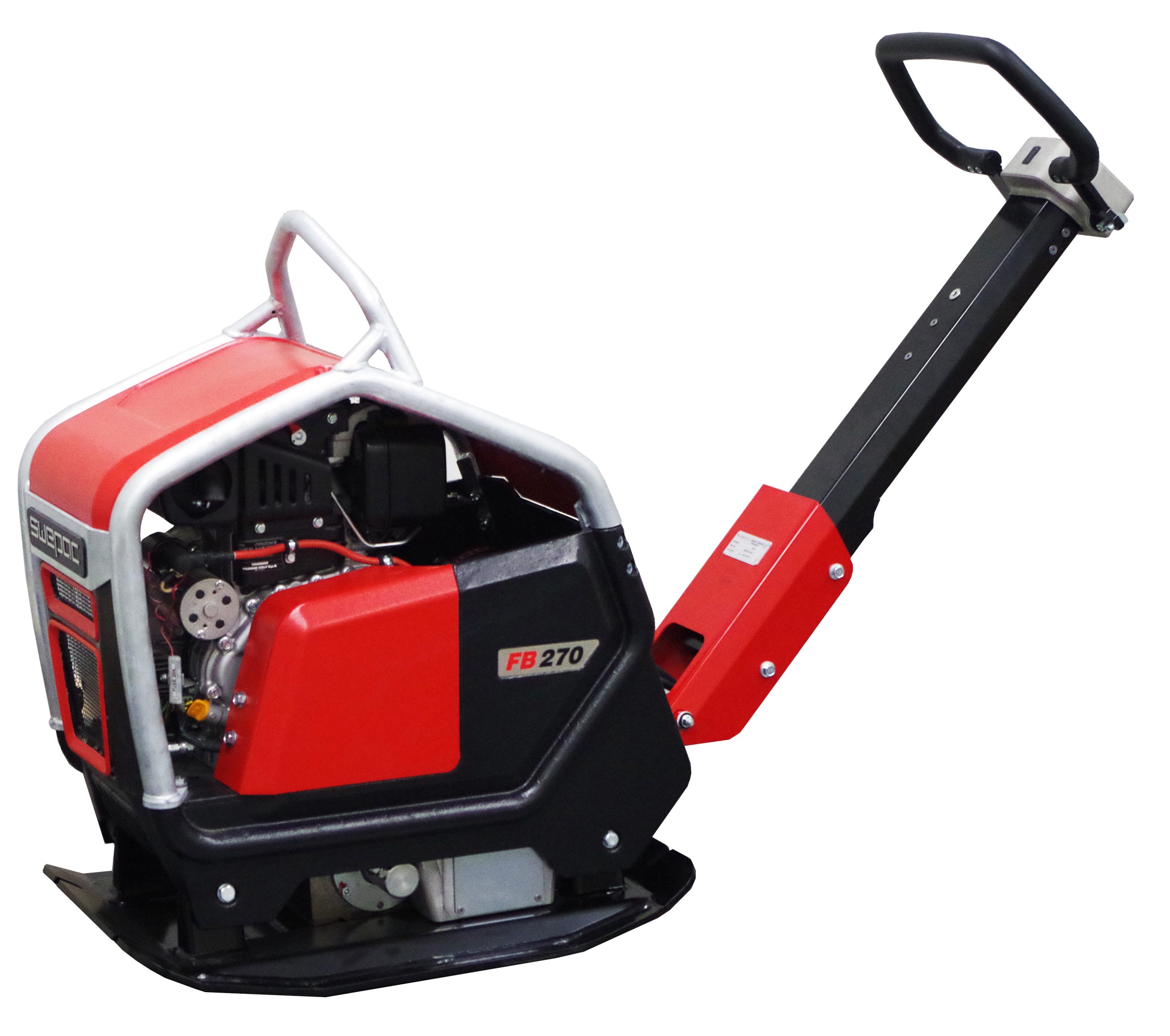

The Swepac FB 270 is a high-performance diesel-powered reversible compactor.

Suited for compaction of sand, gravel, rock fill and paving stones.

  • It has a belt-driven transmission and a fully variable speed control.
  • The Hardox® base plate ensures a long service life.
  • The robust and galvanized protection frame effectively protects the engine against external damage and is equipped with a strong and powerful lifting hook.
  • The compact design makes is suitable in trenches and other areas with limited space. With a paving mat (accessory) attached to the base, it compacts paved areas efficiently for an even surface.
  • The ergonomics are top class with a devibrated handle (HAV<2.5 m/s2).

Tillbehör

  • Paving mat with brackets

Contact us for more information

Technical specifications

Weight, net269 kg
Base plate, width x length500 x 790 mm
Height, max / min1200 / 1030 mm
Length, max / min1530 / 900 mm
EngineYanmar L70
Fuel tank capacity3.3 liter
FuelDiesel
Engine output, max4.7 kW (6.4 hp)
Centrifugal force40 kN
Frequency81-83 Hz
Working speed0–25 m/min
Hand/arm vibrations (HAV)< 2,5 m/s2
Guaranteed sound-power level, LWA108 dB(A)
Sound pressure level (at operator’s ear), OP95 dB(A)
