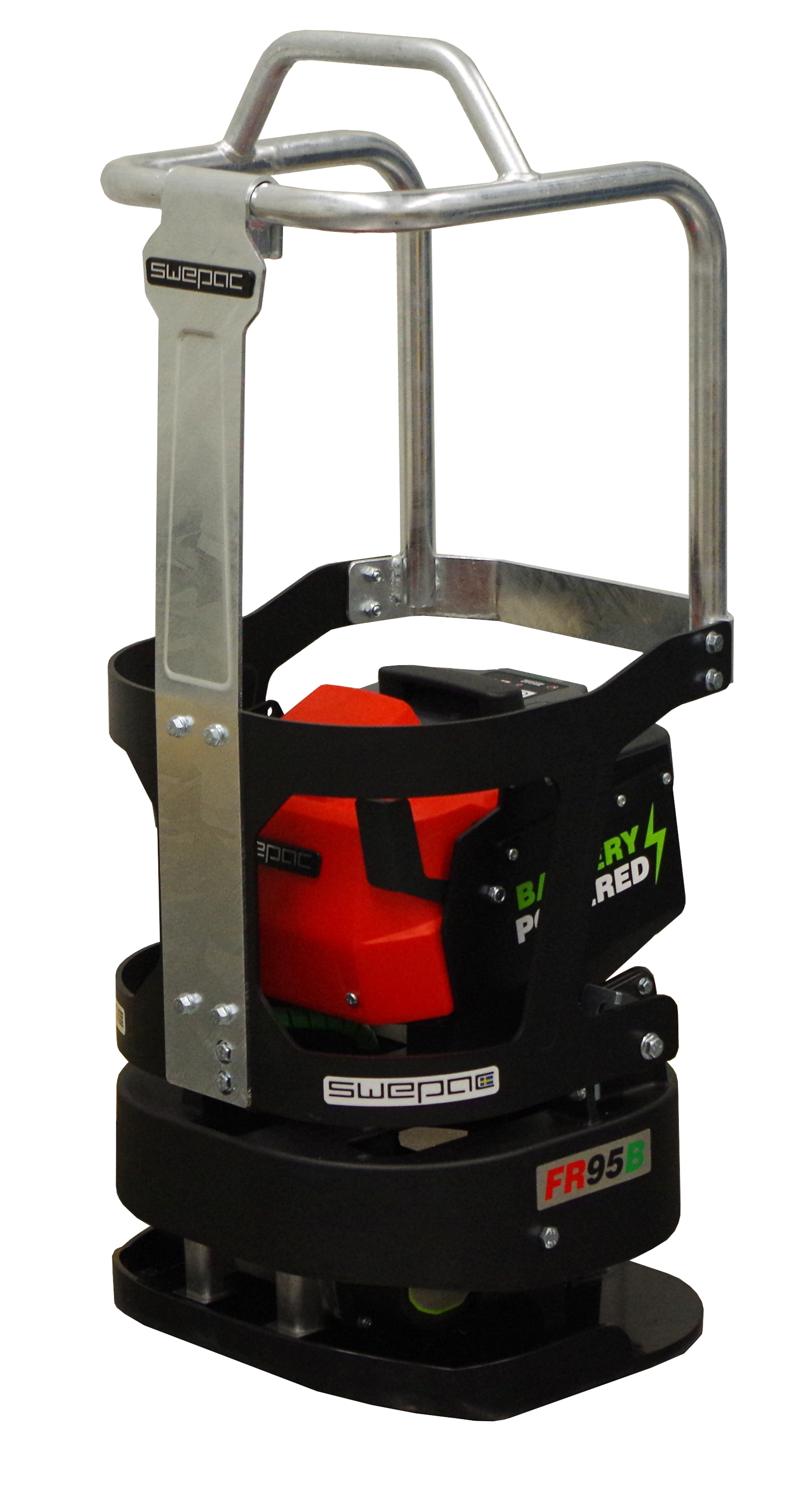

Forward vibratory plate

The Swepac FR 95B is ideal for work in areas where combustion engines should not be used, such as trenches, tunnels, urban areas or indoor construction.

Suited for emission free compaction of sand and gravel

  • The machine comes with three choices of battery; 0.5 kWh, 1.0 kWh or 1.4 kWh.
  • The FR 95B works like a “regular” compactor but offers less hand arm vibration (HAV < 2.5 m/s2) and lower nosie levels.
  • Operating time and charging time depends on size of battery and type of charger. See picture
  • Service and maintenance free – no filters, no engine oil or v-belt. No handling of fuel.
  • A very easy to maneuver machine with a base plate design that enhances compaction in corners and close to curbstones.
  • All our machine models are versatile and easy to operate. They are also durable and reliable meaning lower operating and maintenance costs.

Contact us for more information

Technical specifications

Weight, excl. battery80 kg
Base plate, width x length 430 x 430 mm
Height, max / min 1050 / 940 mm
Length 440 mm
Nominal power1.2 kW
Type of battery Lithium - ion
Centrifugal force 13 kN
Frequency 97 Hz
Working Speed 0-25 m /min
Hand/arm vibrations according to ISO 5349 on gravel surface<2.5 m/s2
Guaranteed sound power level, LwA103 dB(A)
Sound pressure level (at operators ear)89 dB(A)
