Rotative frequency converter

The Swepac PVC-series offer very robust high frequency converters.

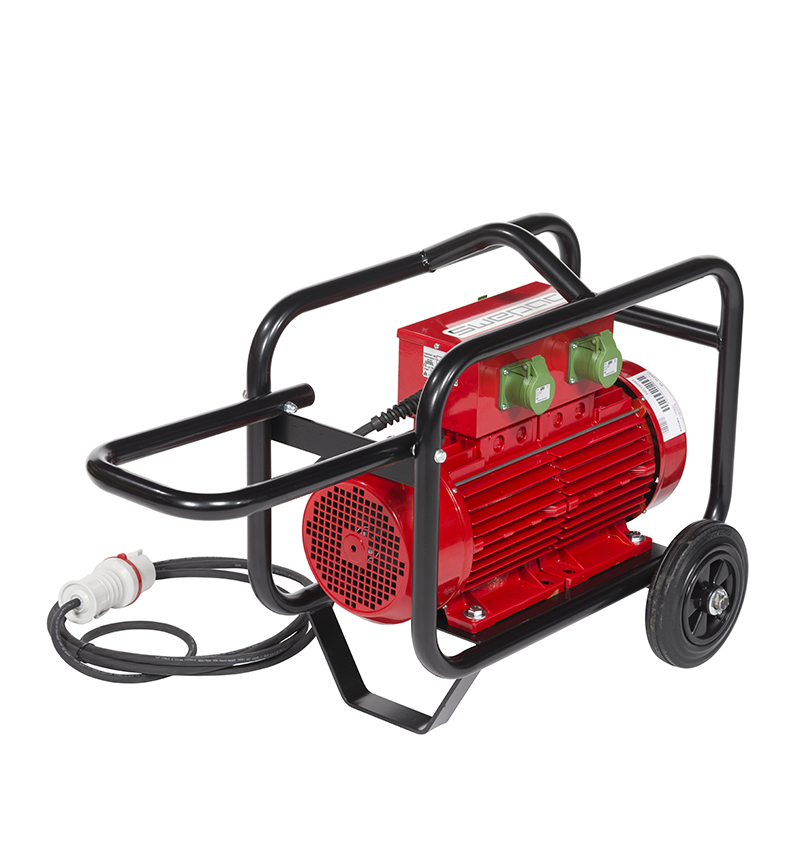

  • A strong and reliable traditional-type rotary mechanical frequency converter with an efficient cooling fan.
  • The unit is protected by a robust steel cage, which provides good protection against mechanical damage,
  • Suited for PVE and PVE-D.
  • PVC 4.5 and PVC 6.0 are equipped with transport wheels and handle for easy movement.
  • Common to our machine models, they are smooth and easy to work with. They are also robust and reliable, which means low operating and maintenance costs.

Accessories

.

Contact us for more information

Technical specifications

Converter typeRotative mechanical
Suited for pokersPVE, PVE-D
Power6.0 kVA
Primary voltage400V, 3-phase
Secondary voltage42V, 200 Hz
Output current82 A
Outlet sockets4
Weight83 kg
