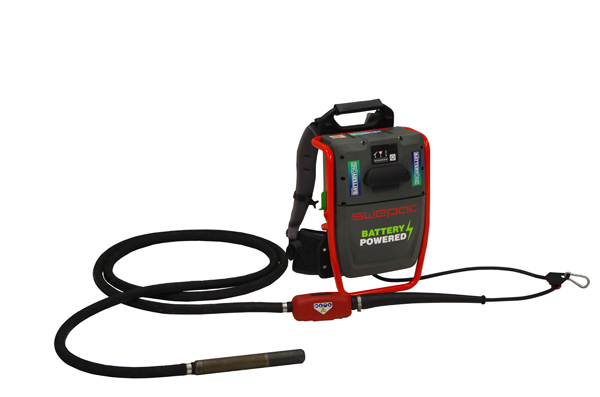

Battery-powered poker vibrator

PVD-BP with wall poker or poker with devibrated handle

The Swepac PVD-BP is an battery-powered poker vibrator means flexible and easy access to all different castings without electric feed cables or fuel requirements.

  • Low weight of the backpack enables longer use without much effort.
  • Poker vibrator with 3 selection of diameters for different castings.
  •  High centrifugal force gives a high concrete consolidation effect.
  •  High insulation class on the electric motor protects against high temperatures.
  • The Poker head is made of hardened special steel which provides a long non-service life.
  • Wall pokers (PVE) manufactured in 1.5 or 3m hose as standard. Special length can be offered upon request.
  • Ergonomic devibrated handle with very low vibration values makes it possible to work comfortably for a long time.
  • Handle with ergonomic design, comfortable to use.
  • Common to our machine models, they are smooth and easy to work with. They are also robust and reliable, which means low operating and maintenance costs.

Download documents

Accessories

.

Contact us for more information

Technical specifications

Voltage35V. 3-phase
Tube diameter / length 38 mm / 370 mm
Amp 1.9 A
Capacity / Centr. force20 m3/h / 1 500 N
Tube diameter / length50 mm / 370 mm
Amp 2.8 A
Capacity / Centr. force30 m3/h / 3 300 N
Tube diameter / length58 mm / 400 mm
Amp 3.8 A
Capacity / Centr. force35 m3/h / 5 600 N
PVE-B
Protective hose, length1.5 / 3.0 m
Electric cabel, length1.5 m
Weight complete poker 1.5 m38 mm / 6 kg; 50 mm / 8 kg; 58 mm / 10 kg
Weight complete poker 3.0 m38 mm / 7 kg; 50 mm / 9.5 kg; 58 mm / 11.5 kg
PVE-DB
Protective hose, length0.4 m
Electric cabel, length1.5 m
Weight complete poker38 mm / 8 kg; 50 mm / 11 kg
Powered byBatteryOne BOB5
Weight, battery BOB56.4 kg
Charger BOC7 / BOC13Charging time 90 / 50min
Weight backpack4.0 kg
