Double drum vibratory roller

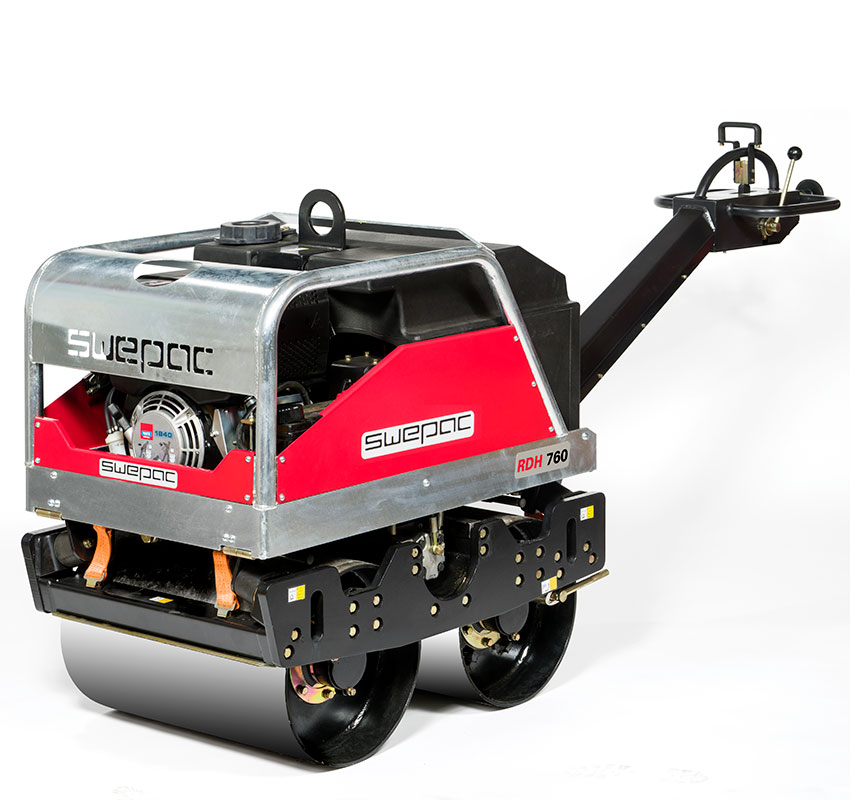

The Swepac RDH 760 is an easy to maneuver hand-guided double drum roller for soil and asphalt applications.

It complements our range of vibratory plates and is suitable for pavements, bicycle paths, yards and playgrounds.

  • It has a reliable Hatz diesel engine with a fully hydraulic system with built-in cooler for optimal productivity. The hydraulic system is well protected under the water tank. A mechanical parking brake ensures safe parking.
  • For safety reasons it has a deadman’s push-stop and the levers for speed, direction and vibration are ergonomically placed in the handle.
  • The roller is easy to start and is available with mechanical or electric start.
  • The dual drums are smooth with no sharp edges on the corners to prevent marks in asphalt or soil. Efficient scrapers on both drums keep them clean from sticking asphalt.
  • The RDH 760 has a large 65 liter water tank made of strong plastic material. The tank is easy to remove whenever it´s not needed.
  • The machine is easy to use and has a minimum of overhang offering free space from obstacle and walls, convenient in confined spaces such as yards and drive ways.
  • Service and maintenance is simplified by a foldable protection frame which gives free space to vital components.
  • The Swepac RDH 760 is easy to transport with a strong lifting device in the middle of the roller.


Contact us for more information

Technical specifications

Operating weight, max756 kg
Operating weight735 kg
Weight, net700 kg
Working width650 mm
Drum diameter404 mm
Static linear force54 N/c
Centrifugal force21 kN
Frequency3 300 Vpm (55 Hz)
EngineHatz 1B40, diesel
Engine output7.5 kW (10.2 hp)
Travel speed0-3.6 km/h
Water tank capacity65 liter
Hydraulic fluid typeISO VG46
Hydraulic fluid capacity14 liter
Guaranteed sound-power level, LWA108 dB(A)
Vibration specification, for hand/arm (HAV)5.0 m/s2
