Screed / surface vibrator

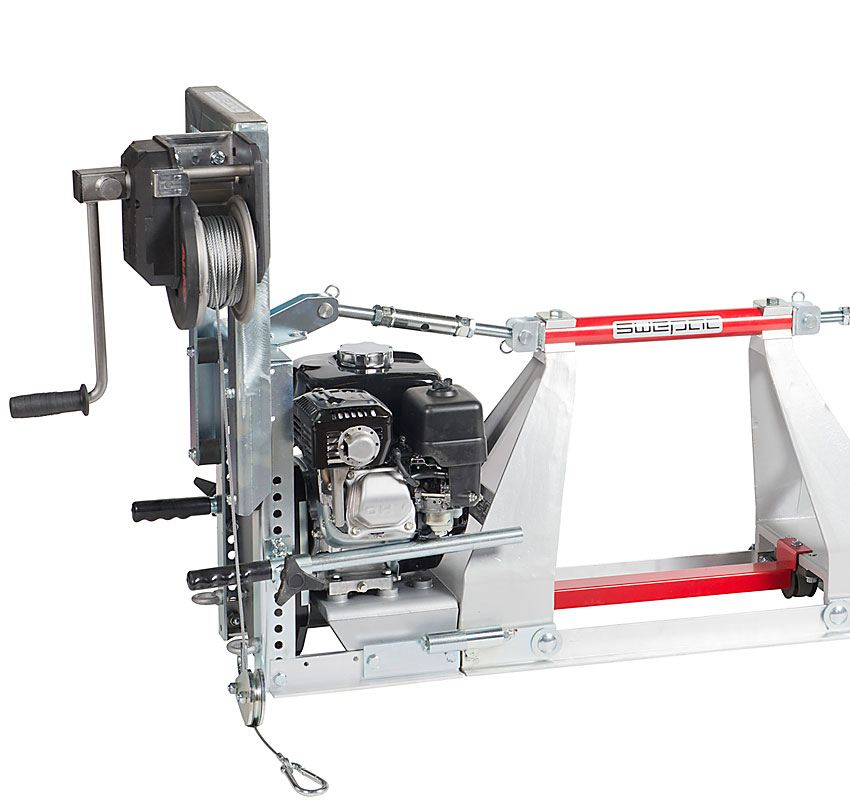

The Swepac SVM 25P is a petrol driven modular screed for surface- and deep-vibration of fresh concrete surfaces.

  • The SVM 25 is based on a modular system consisting of sections that can be built up to a length of 25 m.
  • It has a Honda petrol engine. Reliable and environmental friendly.
  • Made of strong, light weight aluminum, which means low weight / m
  • Can be angled between sections up to 6 degrees.
  • Deep vibration down to about 150 mm.
  • Handwinch is standard equipment.
  • Extendable handles on both drive unit and end-section.
  • Vibrational shaft in stainless steel.
  • High quality bearings that are flush protected.
  • The electric system as well as circuit-breakers are vibration-protected.
  • Can work directly on the reinforcement with “skates” mounted on the screed.
  • As an option, an electric winch-set is available, enabling just one person to operate the screed.
  • All Swepac surface vibrators are versatile and easy to operate. They are strong and reliable which means lower operating and maintenance costs.


  • Skates with stepless adjustment, from 30 – 150 mm.
  • Electric winches, with 3 phase electric motor driven worm gears
  • Extra third winch when using longer screeds to avoid bending in the middle
  • Outrigger U2 or U3 for track rail system
  • Extender, 0.5 m
  • Special connection set for making steeper
    slopes than standard connections
  • Fixed rail support, on request
Electric winches
Extra 3rd winch
Special connection
Previous slide
Next slide

Contact us for more information

Technical specifications

Screed typeModular
Engine, petrolHonda GX200
Engine, output4.8 kW
Sealing classIP 65
Centrifugal force500 N/m
Engine, max rpm (unloaded)3600 rpm
Engine, max rpm (15 m beam)3400 rpm
Fuel tank capacity3.1 liter
Length, max25 m
Weight, petrol drive unit incl winch set63 kg
Weight, end unit incl manual winch25 kg
Weight, 0.5 m module22 kg
Weight, 0.75 m module24 kg
Weight, 1 m module26 kg
Weight, 2 m module42 kg
Weight, 3 m module64 kg
Drive unit, l x w x h300 x 400 x 950 mm
End section, l x w x h150 x 400 x 950 mm
Modules, w x h400 x 556 mm
Hand/arm vibrations (HAV)4.5 m/s2
Guaranteed sound-power level, LWA106 dB(A)
Sound pressure level (at operator’s ear), OP95 dB(A)
