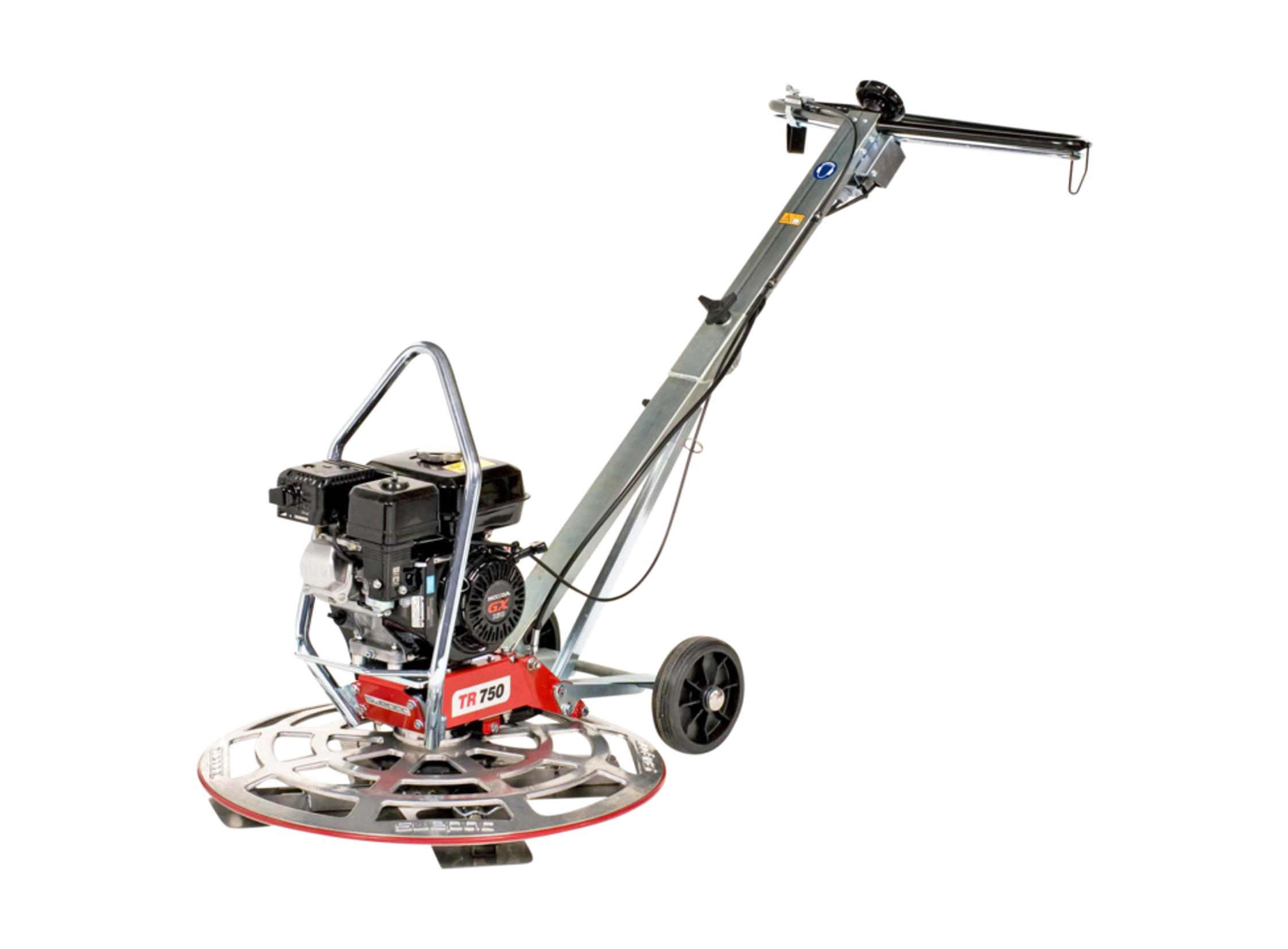

Trowel

All of our machines are versatile and easy to operate. Designed for heavy-duty and with high reliability. This means low running and maintenance costs.

  • The TR 750P has a strong reliable worm gearbox with permanent lubrication.
  • Long and height adjustable handle.
  • The handle can be folded to make transport and storage easy.
  • “Easy grip” dead-man’s handle that is easy to hold from any point along the ergonomic handle.
  • Strong protection frame with a lifting hook.
  • Fast working speed reduces the working time.
  • The rotating protection ring offers excellent visibility features. An O-ring fitted on the outside of the cover protects walls against damage.
  • All steel parts have been galvanized with an extra thick layer to provide better protection against corrosion.
  • Screw or alternatively quick-pitch system for blade adjustment.
  • Unique fast blade change system. Just one quick- release pin per blade.
  • Easy to carry out service, change the blades or the floating disc – just tilt the machine backwards with the transport wheels fitted.
  • The machine has been designed such that when the machine is tilted backwards, no engine oil can escape through the valve into the carburettor or the silencer.

Accessories

Transport wheels

Contact us for more information

Technical specifications

EngineHonda GX160
Engine power3.6 kW (4.8 hp)
Speed RPM (engine)3 600 rpm
Speed RPM (drive shaft)50–150 rpm
Fuel tank capacity3.1 liter
Weight72kg
Weight, transport wheels (including fixture)3,5kg
Protective cover diameter750 mm
Trowel diameter728 mm
Floating disc diameter745 mm
Length in working position1 778 mm
Height in working position1 065 mm
Height in transport position1 142 mm
Hand/arm vibrations (HAV) 5.2 m/s2
Guaranteed sound power level LwA105 dB(A)
Sound pressure level (at operator’s level), OP92 dB(A)
